Petzl
VERTIGO TWIST-LOCK
Quantity:
Connector for progression lanyard

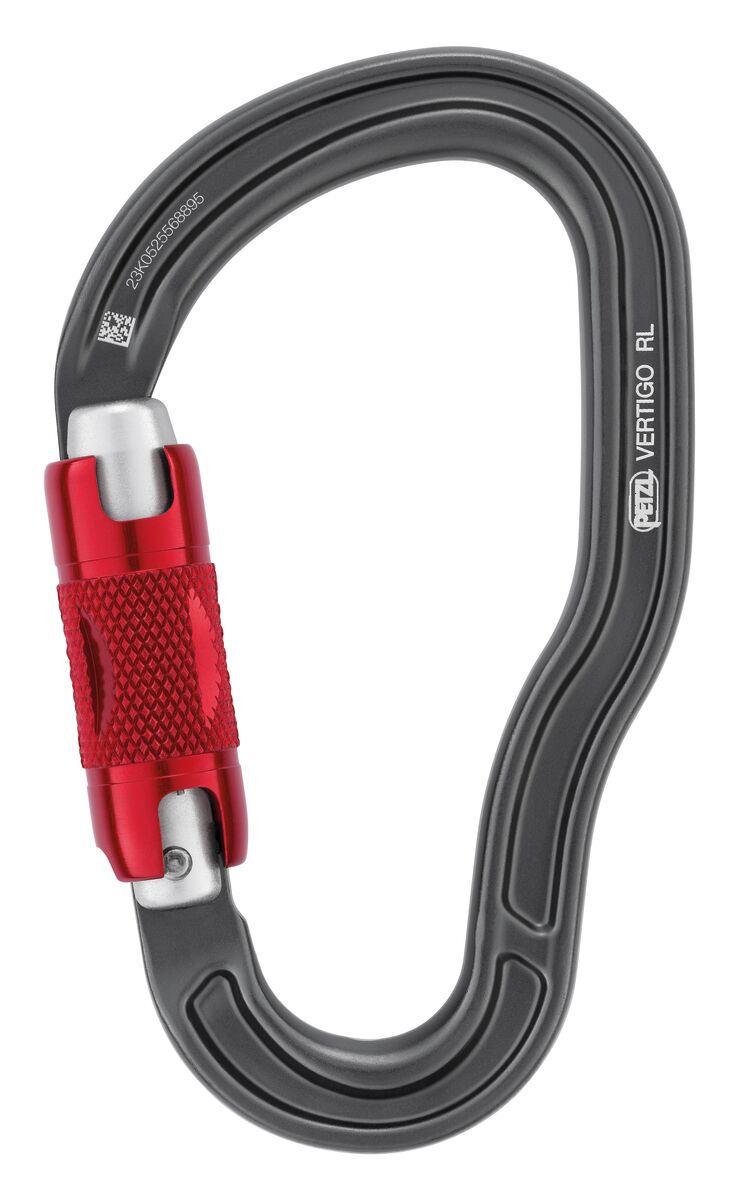

The VERTIGO TWIST-LOCK connector is designed for use on progression lanyards. The excellent grip and automatic locking system make it easy to handle when passing intermediate anchors. The large opening and the Keylock system make it easy to connect. The VERTIGO TWIST-LOCK can be used with a TANGA positioning ring to help orient the carabiner to load the major axis, limit the risk of rotation, and keep it integrated with the ADJUST rope adjuster.
Description
- Connector designed for use at the end of PROGRESS ADJUST or JANE lanyards
- Can be used with a TANGA positioning ring to help orient the carabiner to load the major axis, limit the risk of rotation, and keep it integrated with the ADJUST rope adjuster

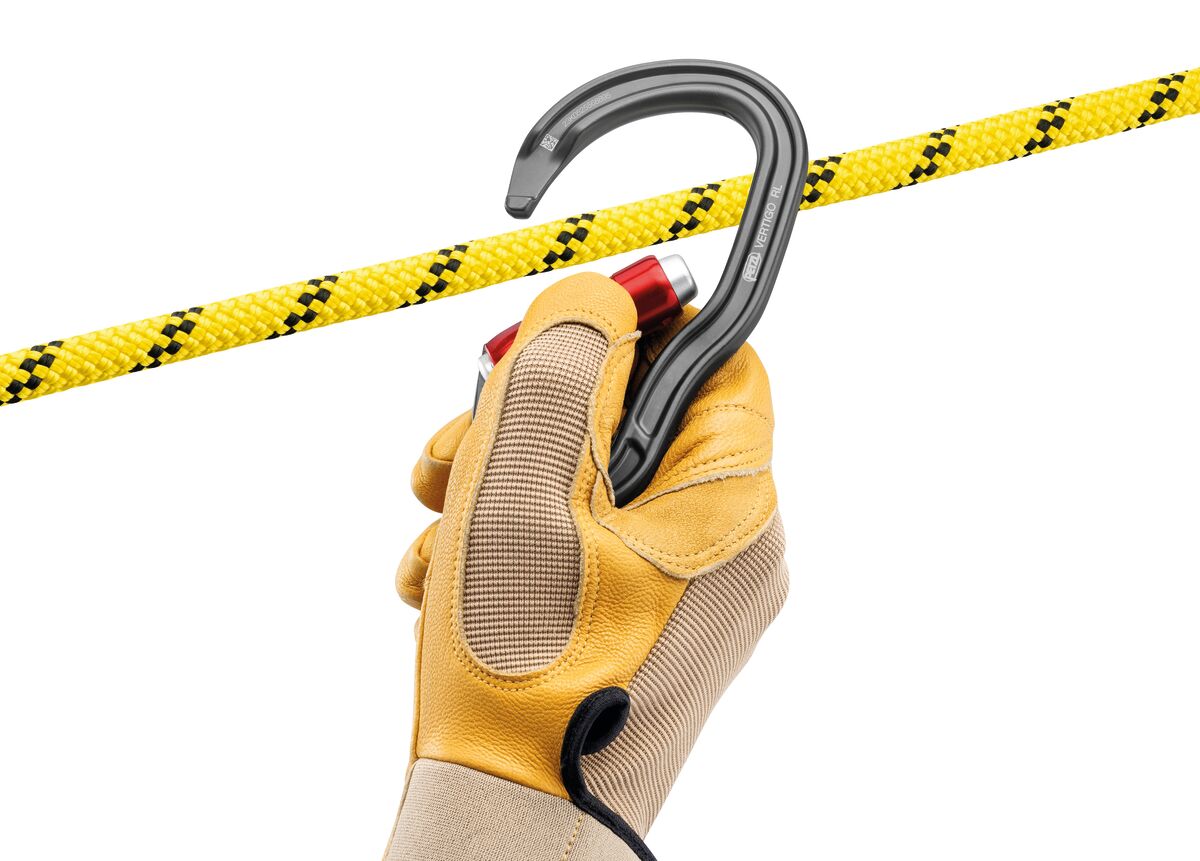

- Easy to handle when passing intermediate anchors:
- Ergonomic shape provides excellent grip for the user

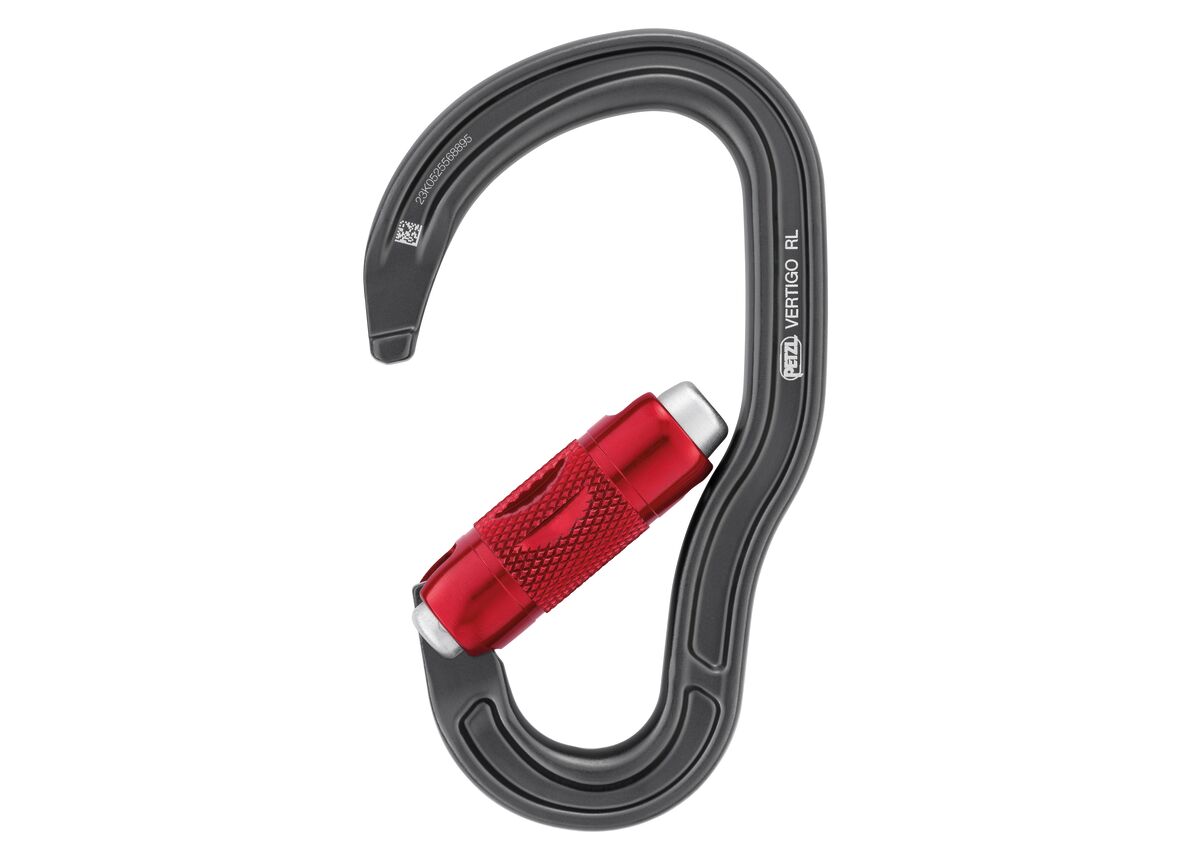

- TWIST-LOCK system allows the connector to lock automatically when it closes and unlock with a simple rotation
- Large opening makes it easy to connect
- Keylock system helps prevent accidental snagging
- H-frame:
- Provides superior strength-to-weight ratio
- Helps protect markings from abrasion
Specifications
- Material(s): Aluminum
- Certification(s): CE EN 362 B, CE EN 12275 B, CE EN 12275 K, GB/T 23469 B, GB/T 23469 K, XF 494:FZL-G-Q
References
| References | M041AA00 |
|---|---|
| Weight | 77 g |
| Locking system | TWIST-LOCK |
| Major axis strength | 25 kN |
| Minor axis strength | 10 kN |
| Open gate strength | 8 kN |
| Gate opening | 25 mm |
| Guarantee | 3 years |
| Inner Pack Count | 1 |
| Price | $29.95 |
Technical notice
Declaration Of Conformity
- Download the PDF : UE-Declaration-M041AA-VERTIGO RL - 0.23 MB
-
Download the PDF : JSFAD-Declaration-M041AA-VERTIGO RL - 0.20 MB
