JAG

Petzl

JAG

$100.95
Quantity:

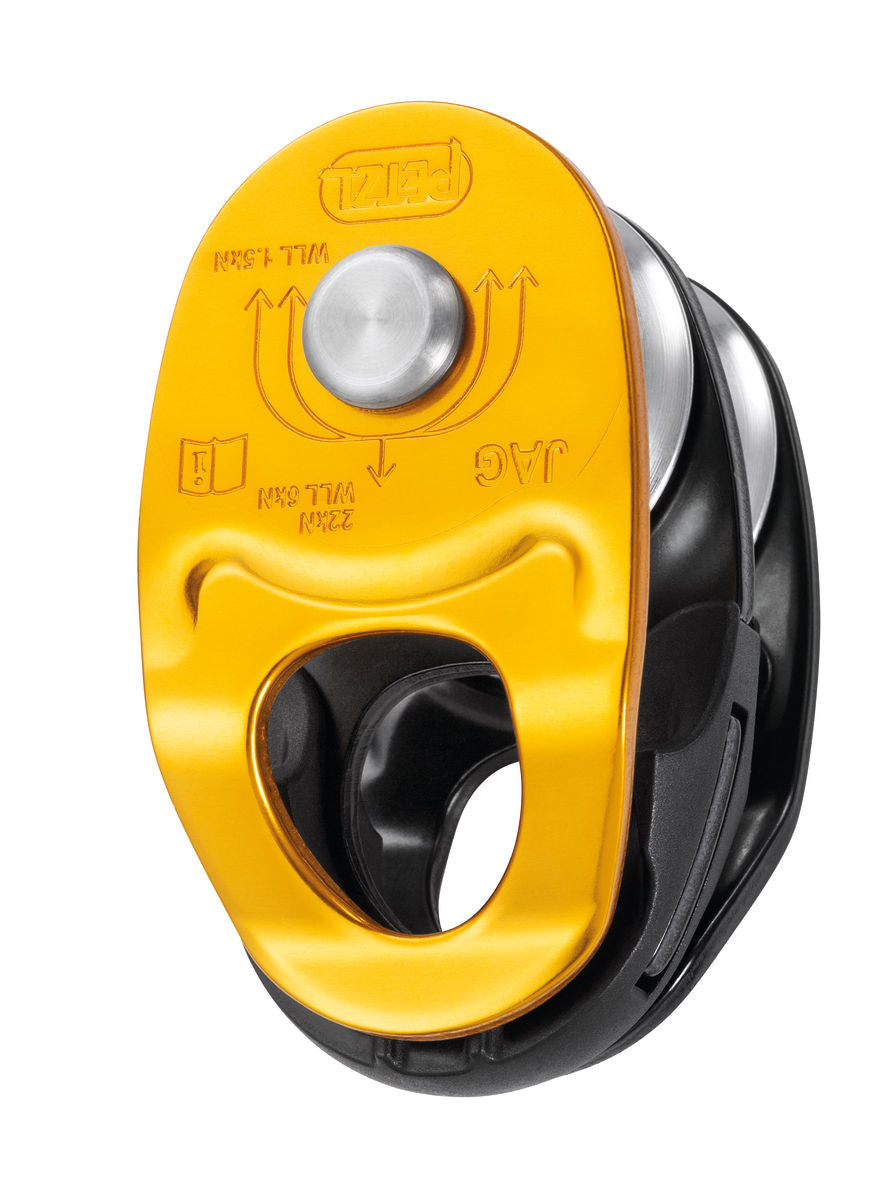

High-efficiency double pulley

The JAG double pulley is designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system. Sheaves mounted on sealed ball bearings for excellent efficiency.

Description

  • Designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system
  • Sheaves mounted on sealed ball bearings for excellent efficiency

Specifications

  • Weight: 120 g
  • Certification(s): CE EN 12278, UKCA, NFPA 2500 Technical Use
  • Material(s): aluminum, nylon
  • Min. rope diameter: 8 mm
  • Max. rope diameter: 11 mm
  • Sheave type: sealed ball bearings
  • Sheave diameter: 25 mm
  • Maximum working load: 2 × 1,5 kN × 2 = 6 kN
  • Breaking strength: 2 × 4 kN × 2 = 16 kN
  • Efficiency: 91 %

References

References P45
Guarantee 3 years
Inner Pack Count 1
Price $100.95

PPE inspection procedure

  •  Download the PDF - 1.09 MB

PPE checklist
